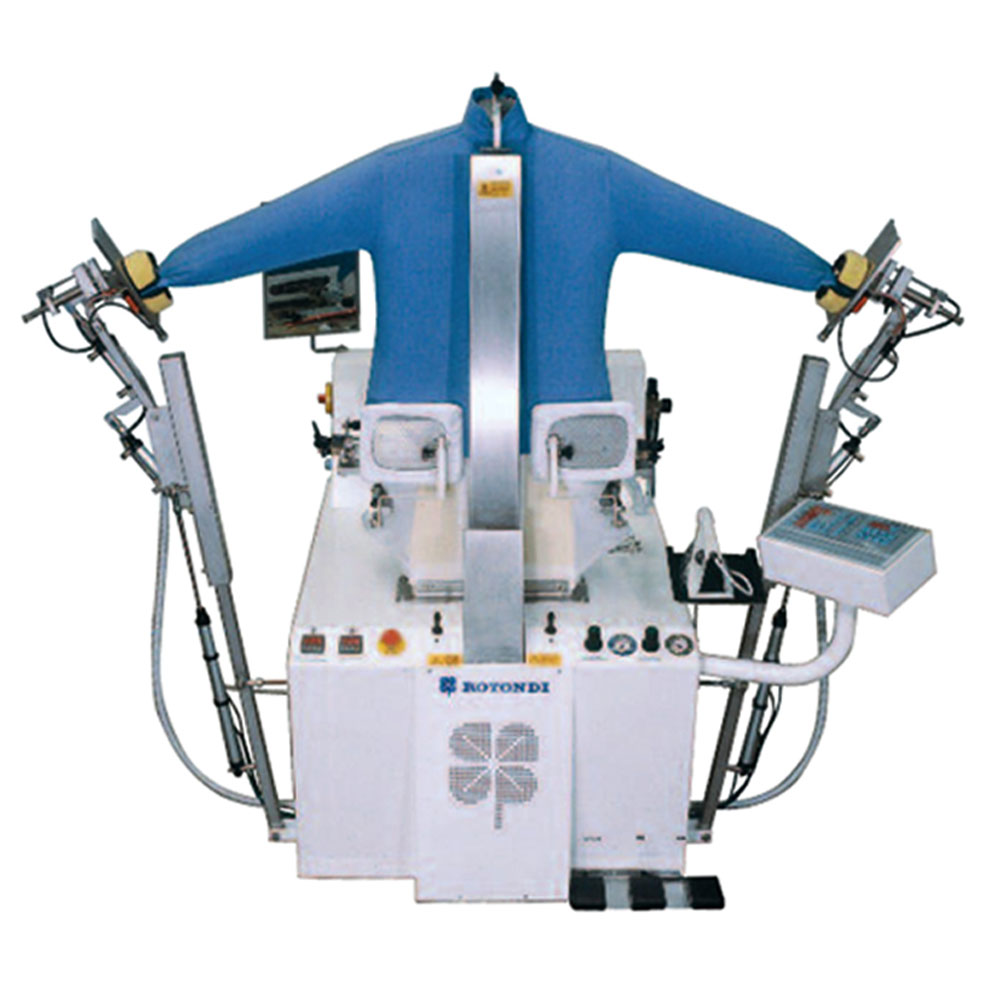

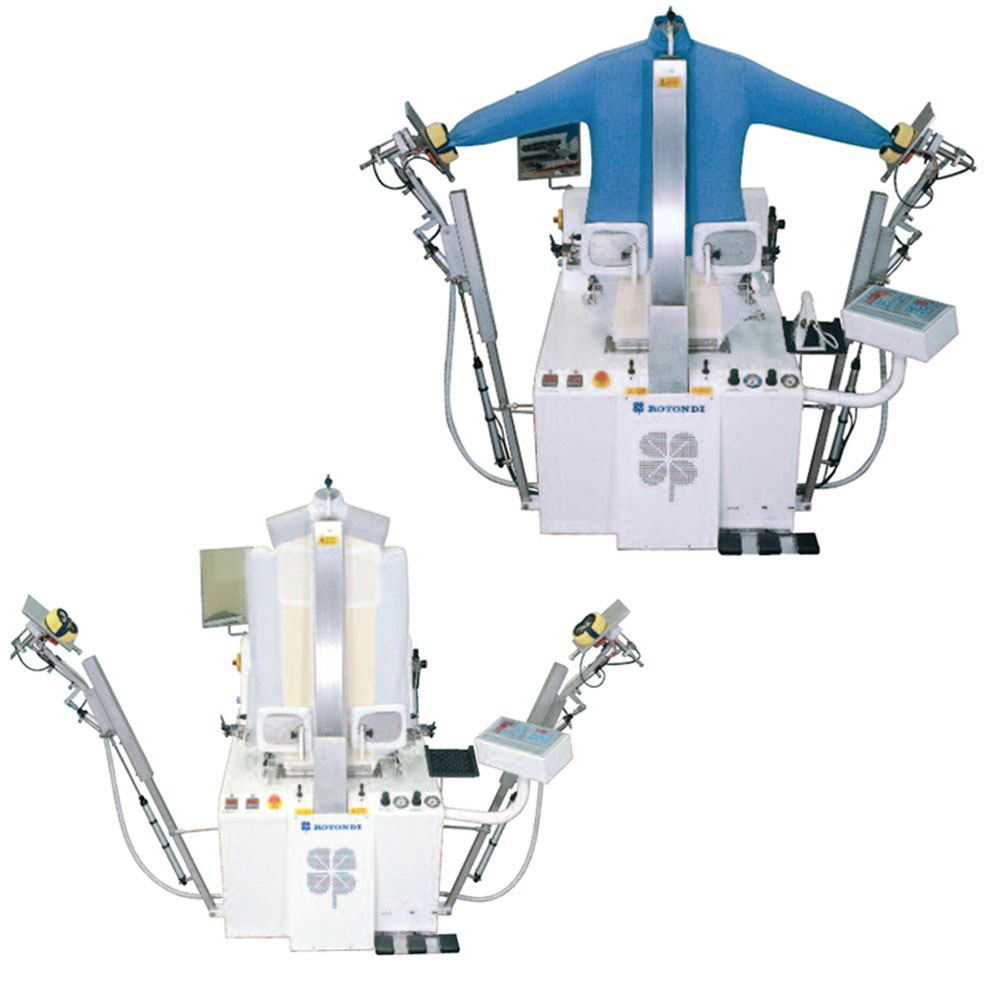

Rotondi Air Operated Shirt Finisher

Description

Options

• JOY Joystick for automatic positioning of
shortsleeve and longsleeve clamps.
• Automatic discharge device from the shoulders
or from the hanger.

Rotondi Air Operated Shirt Finisher, SR3100, with builtin vacuum and builtin boiler, to be connected to external compressed air connection.

SR3000/V Steam operated. To be connected to centralised steam plant.
Suitable for ironing wet and dry shirts. Steam consumption : 25 30 kg/h
SR3000/E Electric operation for wet shirts. Consumption of electricity 24 KW
• Stainless steel heated form, vacuum, blowing and steaming (only SR3000/V).
• Automatic vacuum in the body for easy positioning of the shirt.
• Digital computer for control of all the phases of preparation and ironing functions
9 programs with piece metre. User friendly software.
• Pneumatic collar blocking.
• Pneumatic opening of shoulders, based on size.
• Automatic tensioning of shirt sides.
• Front paddle electronically heated for ironing of front placket, with electronic
thermostat.
• Front and back pneumatic paddles to block shirt bottom, with photocell.
• Steam superheater with electronic thermostat up to 200°C.
• Automatic sleeve tensioning.
• Blowing motor at 2,2 KW3 HP. Separate vacuum motor at 0,55KW 0,75HP
• Blowing quantity adjustable electronically.
• EC2002 iron with stainless steel plate for ironing shirt pockets.
